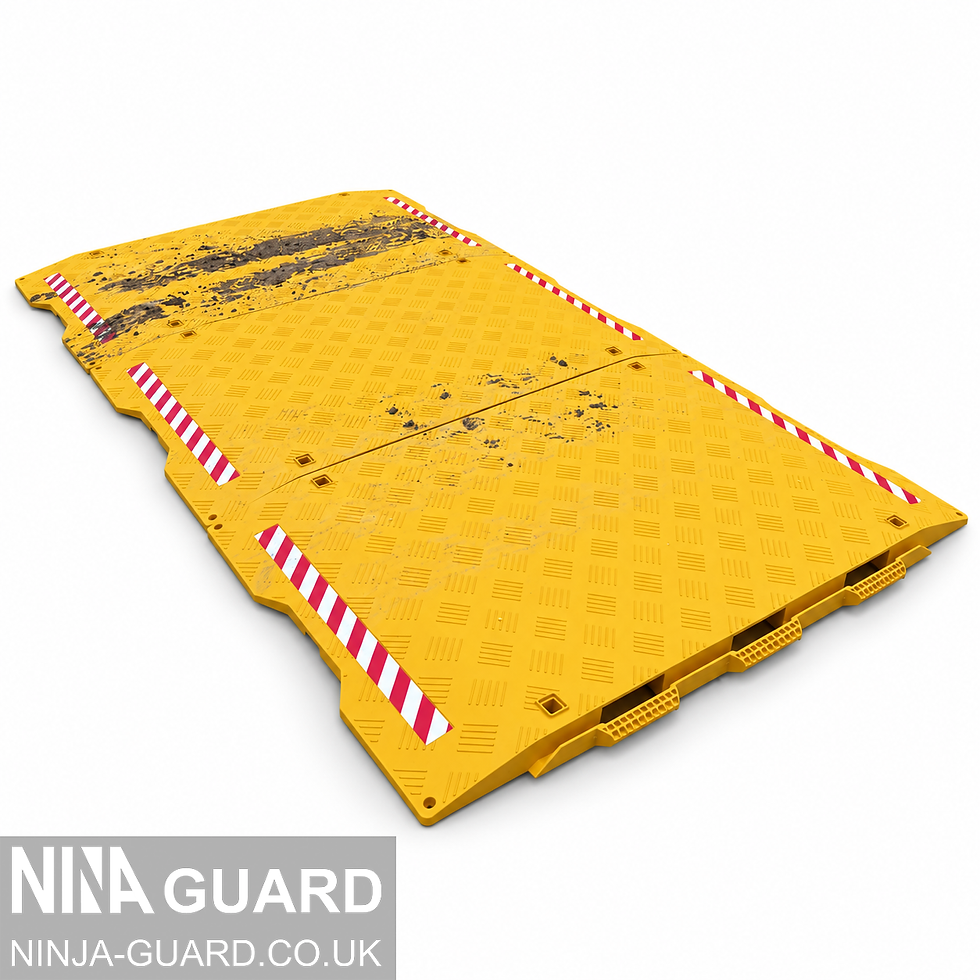

Ninja Guard Trench Bridge for Wider, Longer Access
When a worksite needs a wider, longer crossing, the right board can make all the difference. Our Trench Bridge measures 1,700 mm long and 1,000 mm wide, providing a practical crossing for pedestrians and a wheelbarrow.
The removable rails add edge protection when required. Take them off, and the board can also be used as a trench cover, footway board or road plate for spanning voids of up to 1 m. The linkable system allows multiple boards to be joined to create wider access.
Designed for practical use on site, the board features an anti-slip tread pattern, reflective film along the edges, carry handles and fixing points so it can be pinned to the ground.
Product specifications
Board: 1,700 mm (L) × 1,000 mm (W) × 60 mm (H)
Board weight: 23.5 kg
Each rail: 1,130 mm (L) × 1,050 mm (H) × 20 mm (W)
Rail weight: 6 kg each
Removable rails
Linkable system for wider access
Anti-slip tread pattern
Reflective film on edges
Carry handles
Can be pinned to the ground
One board, multiple configurations—helping you adapt access to the needs of the job.
